Jaw Crusher

Mobile Crusher

Key Specifications

Feeding size:350-800mm

Production Capacity:

Warranty/Applicable:70-650t/h

Applied Materials:stone, coal, limestone, granite, basalt, quartz, iron ore, gold ore, marble, construction waste, etc.

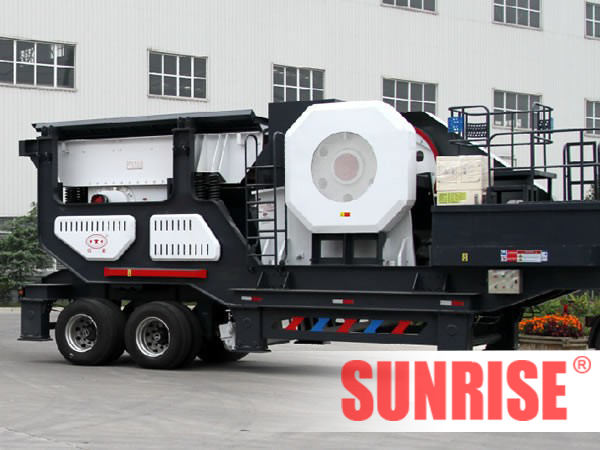

Introduction of Mobile Crusher/Portable Crusher

1. Mobile crusher is a kind of movable crushing equipment, which integrates crushing and screening operation on one machine. It is widely used to process stones, ores, minerals, construction waste in mining, quarry and construction.
2. According to materials features and your requirements, it can be used for primary, medium and fine crushing by flexible crusher equipment configuration.

mobile crusher
3. Mobile crusher can be independent operation and the raw materials can be processed without being transported from one place to another place, which greatly improving the production efficiency and saving costs.
4. Besides the tyre mounted mobile crusher, we also have crawler mounted mobile crusher for sale. You can choose the proper one according to your needs.

Advantages of Mobile Crusher/Portable Crusher

1. High production capacity, it can be up to 35-720t/h.
2. High mobility and flexible product configuration.
3. Strong adaptability to materials.
4. Saving transportation cost 20%.
5. Reliable operation and easy maintenance.

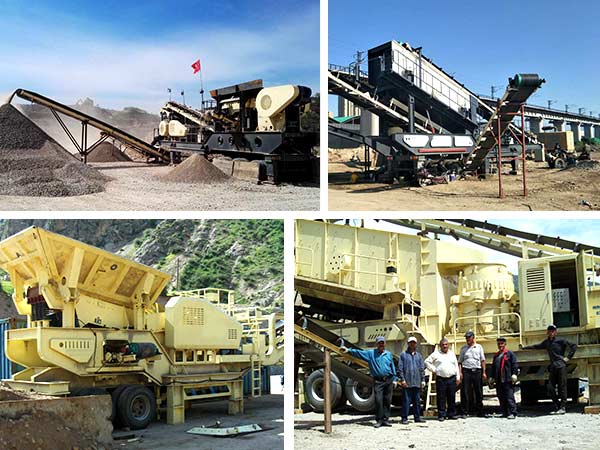

mobile crusher

Mobile Crusher Price

Mobile crusher prices are different depends on different crusher specifications. As the mining crusher manufacturer with almost 40 years history in China, we will provide the maximum preferential price and discount for you. Welcome to visit our company and factory. What is more, you can send your inquiry at any time, we will contact you as soon as possible.

Technical Data

Mobile Jaw Crusher
Mobile Impact Crusher
Mobile Screening Plant
Mobile Sand Making Plant
Mobile Cone Crusher
Mobile Impact Crush Screen Plant
Model HX938HD86 HX1149HD98 HX1349HD110 HX1349HD125
Transportation lenght(mm) 12600 13500 14500 15200
Transportation Width(mm) 2600 2700 2800 2900
Transportation Height(mm) 3870 4200 4450 4500
Maximum Lenght(mm) 12500 14000 16100 16700
Maximum Width(mm) 4100 4500 5100 5100
Maximum Height(mm) 4100 4900 5000 5300
Weight(t) 39 57 55 65
Tire Configuration Dualaxial Triaxial Triaxial Triaxial
Jaw Crusher HD86 HD98 HD110 HD125
Maximum Feeding Size(mm) 500 550 660 800
Discharge opening range 50-150 75-175 100-200 125-225
Capacity(t/h) 85-275 110-350 215-510 280-650
Vibrating Feeder ZSW380×95 ZSW420×110 ZSW490×130 ZSW490×130
Main Belt Conveyor B800×8.5m B1000×9.5m B1000×11m B1200×11m
Side-opening Belt conveyor(optional) B500×3m B650×3.5m B650×4m B650×4m
Gensrt(optional) 200KW 250KW 270KW 400KW
Iron separator(optional) RCYD(C)-8 RCYD(C)-10 RCYD(C)-10 RCYD(C)-12
